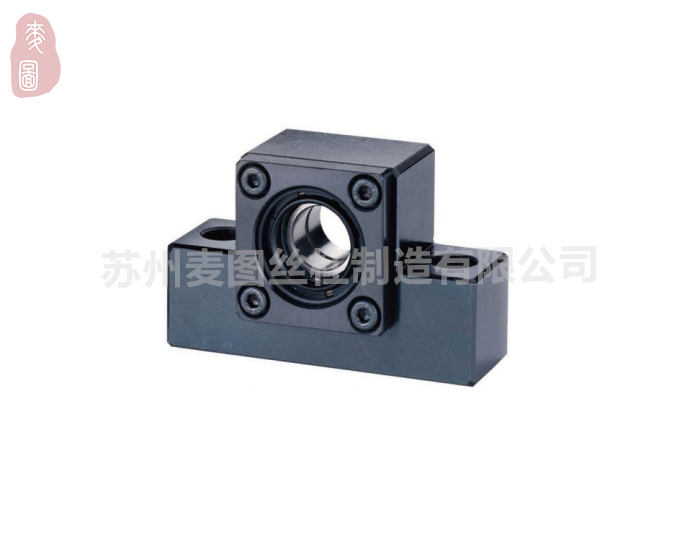

主营产品 - 丝杠辅配件 - EK系列（凸型固定侧）

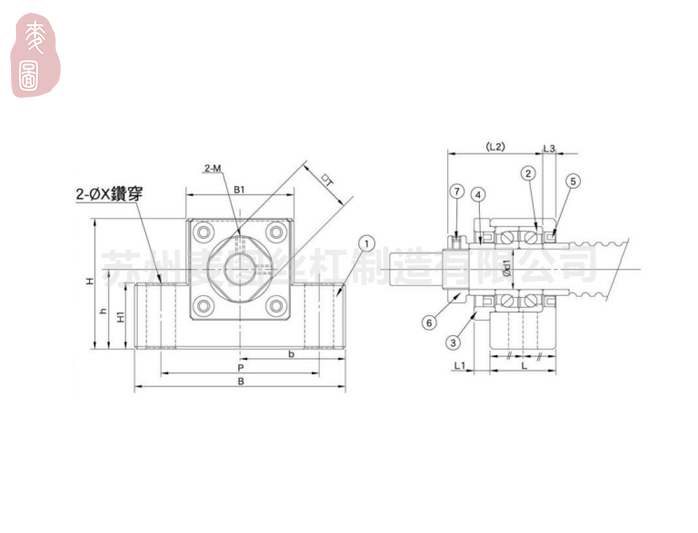

参数介绍
|
型号 |
轴径 Shaft diameter d1 |
L |
L1 |
L2 |
L3 |
B |
H |
b |
h |
B1 |
H1 |
P |
X |
Y |
Z |
M |
T |
|
±0.02 |
±0,02 |
||||||||||||||||
|
EK05 |
5 |
16.5 |
5.5 |
18.5 |
3.5 |
36 |
21 |
18 |
11 |
20 |
8 |
28 |
4.5 |
- |
- |
M3 |
11 |
|
EK06 |
6 |
20 |
5.5 |
22 |
3.5 |
42 |
25 |
21 |
13 |
18 |
20 |
30 |
5.5 |
9.5 |
11 |
M3 |
12 |
|
EK08 |
8 |
23 |
7 |
26 |
4 |
52 |
32 |
26 |
17 |
25 |
26 |
38 |
6.6 |
11 |
12 |
M3 |
14 |
|
EK10-1 |
10 |
24 |
6 |
29.5 |
6 |
65 |
43 |
32.5 |
21 |
36 |
20 |
52 |
6.6 |
|
|
M3 |
16 |
|
EK10 |
10 |
24 |
6 |
29.5 |
6 |
70 |
43 |
35 |
25 |
36 |
24 |
52 |
9 |
|
|
M3 |
16 |
|
EK12 |
12 |
24 |
6 |
29.5 |
6 |
70 |
43 |
35 |
25 |
36 |
24 |
52 |
9 |
|
|
M4 |
19 |
|
EK15 |
15 |
25 |
6 |
36 |
5 |
80 |
49 |
40 |
30 |
41 |
25 |
60 |
11 |
|
|
M4 |
22 |
|
EK20 |
20 |
42 |
10 |
50 |
10 |
95 |
58 |
47.5 |
30 |
56 |
25 |
75 |
11 |
|
|
M4 |
30 |
|
I 编号/Park No. |
产品名称/Part name |
数量/Qty |
|
1 |
轴承座本体/Housing |
1 |
|
2 |
轴承/Bearing |
1 组/1 set |
|
3 |
压板/Holding lid |
1 |
|
4 |
间隔圈/Collar |
2 |
|
5 |
轴封/Seal |
1（2） |
|
6 |
固定螺帽/Lock nut |
1 |
|
7 |
内六角止付螺丝附铜片 Hexagon socket-head Setscrew (with set piece) |
2 |
