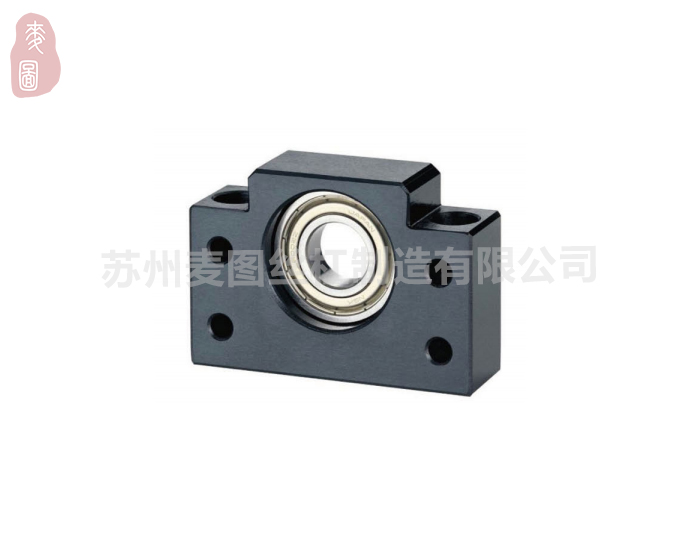

主营产品 - 丝杠辅配件 - BF系列（方形支撑座）
参数介绍
|

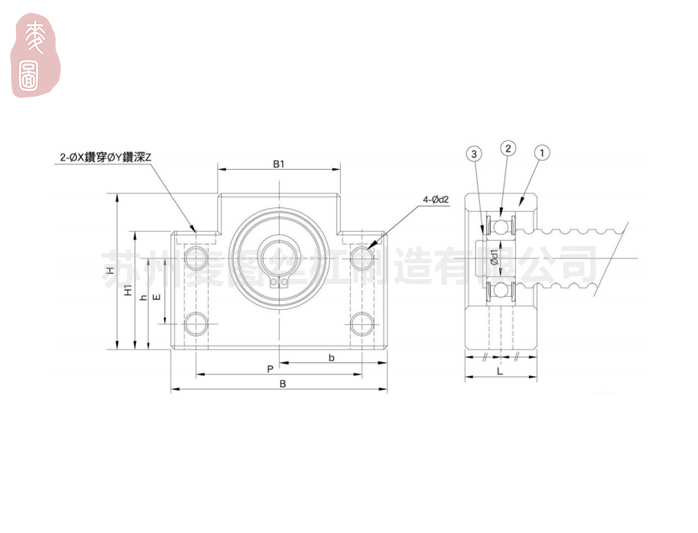

编号/Park No. |
产品名称/Part name |
数量/Qty |
|
1 |
轴承座本体/Bearing |
1 |
|
2 |
轴承/Bearing |
1 组/1 set |
|
3 |
C型扣/Snap ring |
1 |
|
型号 Model NoJ |
轴径 diameter D1 |
L |
B |
H |
b |
h |
B1 |
H1 |
E |
P |
d2 |
X |
Y |
Z |
使用轴承 |
使用C型扣环 |
|
±0,02 |
±0.02 |
|||||||||||||||
|
BF10 |
8 |
20 |
60 |
39 |
30 |
22 |
34 |
32.5 |
15 |
46 |
5.5 |
6.6 |
10,7 |
5 |
608ZZ |
S 08 |
|
BF12 |
10 |
20 |
60 |
43 |
30 |
25 |
34 |
32.5 |
18 |
46 |
5.5 |
6.6 |
10.8 |
1.5 |
6000ZZ |
S 10 |
|
BF15 |
15 |
20 |
70 |
48 |
35 |
28 |
40 |
38 |
18 |
54 |
5.5 |
6.6 |
11 |
6.5 |
6002ZZ |
S 15 |
|
BF17 |
17 |
23 |
86 |
64 |
43 |
39 |
50 |
55 |
28 |
68 |
6.6 |
9 |
14 |
8.5 |
6003ZZ |
S 17 |
|
BF20 |
20 |
26 |
88 |
60 |
44 |
34 |
52 |
50 |
22 |
70 |
6.6 |
9 |
14 |
8.5 |
6004ZZ |
S 20 |
|
BF25 |
25 |
30 |
106 |
80 |
53 |
48 |
64 |
70 |
33 |
85 |
9 |
11 |
17 |
11 |
6205ZZ |
S 25 |
|
BF30 |
30 |
32 |
128 |
89 |
64 |
51 |
76 |
78 |
33 |
102 |
11 |
14 |
20 |
13 |
6206ZZ |
S 30 |
|
BF35 |
35 |
32 |
140 |
96 |
70 |
52 |
88 |
79 |
35 |
114 |
11 |
14 |
20 |
13 |
6207ZZ |
S 35 |
|
BF40 |
40 |
40 |
160 |
110 |
80 |
60 |
100 |
90 |
37 |
130 |
14 |
18 |
26 |
17.5 |
6208ZZ |
S 40 |
