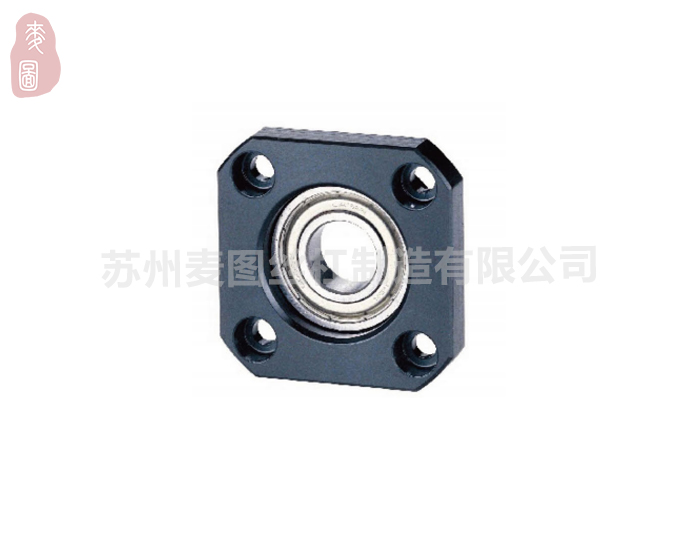

主营产品 - 丝杠辅配件 - FF系列(圆形支撑侧)

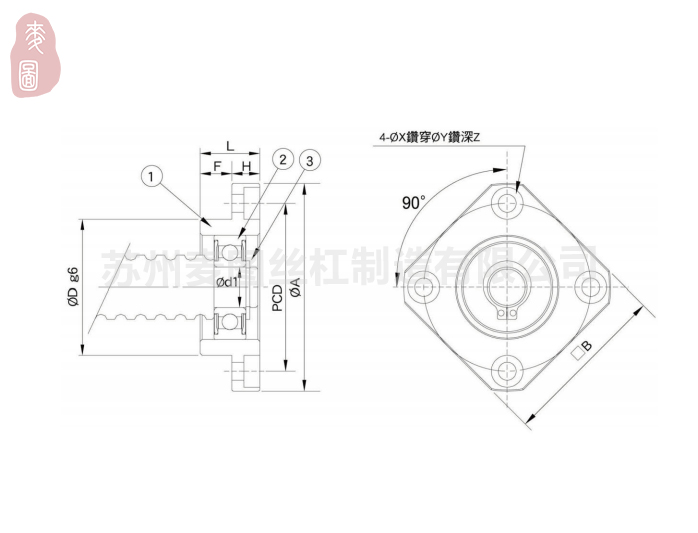

参数介绍
|
型号 |
轴径 |
L |
H |
F |
Dg6 |
A |
PCD |
B |
X |
Y |
Z |
使用轴承 |
使用C型扣环 |
|
|
FF06 |
6 |
10 |
6 |
4 |
22 |
-0.007 |
36 |
28 |
28 |
3.4 |
6.5 |
4 |
606ZZ |
S 06 |
|
-0.02 |
|
|
|
|
|
|
|
|
||||||
|
FF10 |
8 |
12 |
7 |
5 |
28 |
-0.007 |
43 |
35 |
35 |
3.4 |
6.5 |
4 |
608ZZ |
S 08 |
|
-0.02 |
|
|
|
|
|
|
|
|
||||||
|
FF12 |
10 |
15 |
7 |
8 |
34 |
-0.009 |
52 |
42 |
42 |
4.5 |
8 |
4 |
6000ZZ |
S 10 |
|
-0.025 |
|
|
|
|
|
|
|
|
||||||
|
FF15 |
15 |
17 |
9 |
8 |
40 |
-0.009 |
63 |
50 |
52 |
5.5 |
9.5 |
5.5 |
6002ZZ |
S 15 |
|
-0.025 |
|
|
|
|
|
|
|
|
||||||
|
FF17 |
17 |
20 |
11 |
9 |
50 |
-0.009 |
77 |
62 |
61 |
6.6 |
1 1 |
6.5 |
6203ZZ |
S 17 |
|
-0.025 |
|
|
|
|
|
|
|
|
||||||
|
FF20 |
20 |
20 |
11 |
9 |
57 |
-0.01 |
85 |
70 |
68 |
6.6 |
11 |
6.5 |
6204ZZ |
S 20 |
|
-0.029 |
|
|
|
|
|
|
|
|
||||||
|
FF25 |
25 |
24 |
14 |
10 |
63 |
-0.01 |
98 |
80 |
79 |
9 |
14 |
8.5 |
6205ZZ |
S 25 |
|
-0.029 |
|
|
|
|
|
|
|
|
||||||
|
FF30 |
30 |
27 |
18 |
9 |
75 |
-0.01 |
117 |
95 |
93 |
11 |
17 |
11 |
6206ZZ |
S 30 |
|
-0.029 |
||||||||||||||
|
编号/Park No. |
产品名称/Part name |
数量/Qty |
|
1 |
轴承座本体/Housing |
1 |
|
2 |
轴承/Bearing |
1 组/1 set |
|
3 |
C型扣/Snap ring |
1 |
